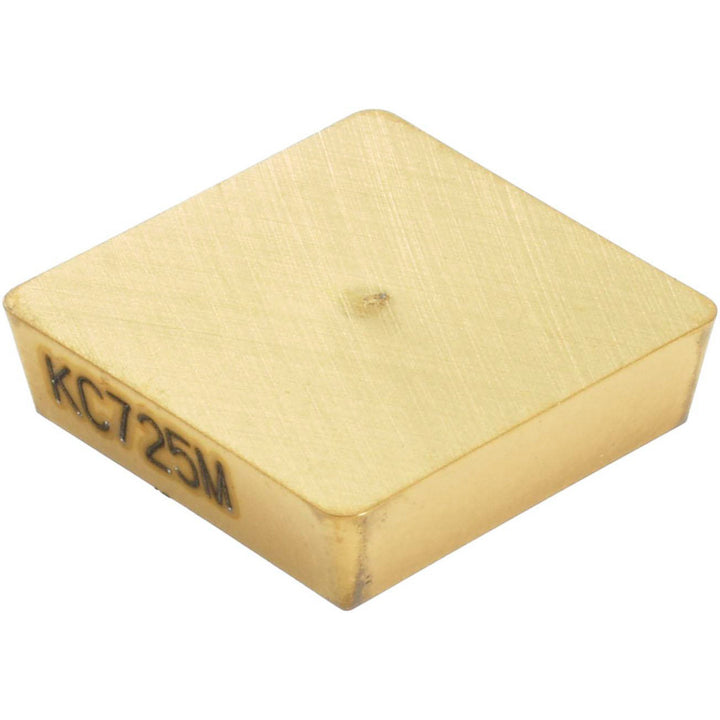

SPUN120308 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1162526

Kennametal

SPUN120308 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1162526

MFR# 1162526ISO/ANSI# SPUN120308Cat# SPUN120308Series SPUN

$29.26List $35.71 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1162526 is a SPUN120308 solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSPU422
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code422
Insert styleSPUN
Iso codeSPUN120308
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSPUN120308
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.7500
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
