Kennametal

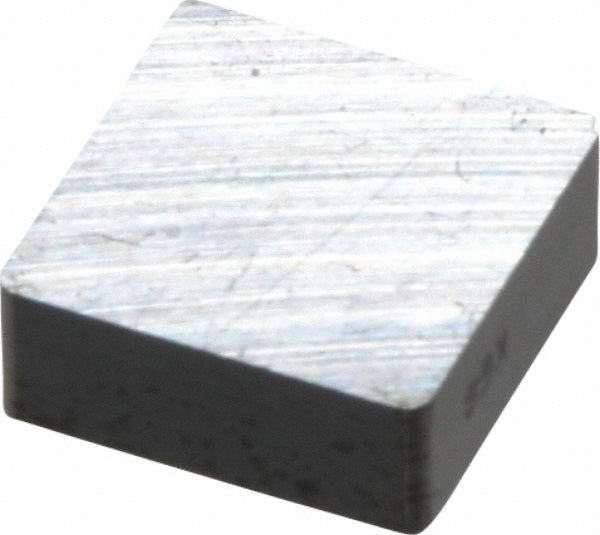

SNG432 Carbide Insert, Grade K68 - Kennametal 1162581
MFR# 1162581ISO/ANSI# SNG120408Series KENDEX
$29.43List $35.30
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeK68
MaterialCarbide
Description
The Kennametal 1162581 is a SNG432 carbide indexable insert, grade K68. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi insert codeSNG432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Included angle90
Industry standard numberSNG432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNG
Insert thickness in3/16
Iso codeSNG432
Iso insert codeSNG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1162581
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
