Kennametal

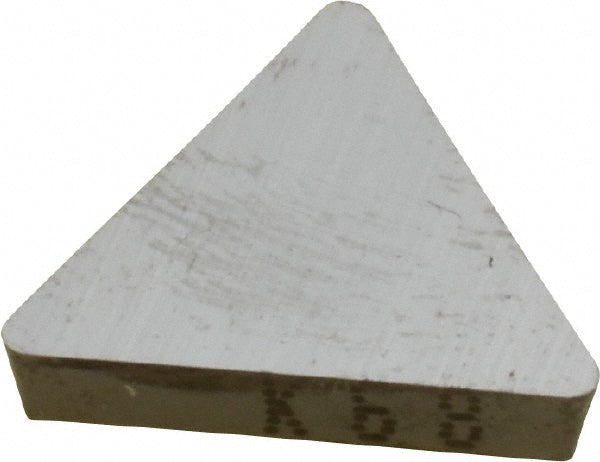

T - Triangle 3/8" IC Carbide Insert, Grade K68 - Kennametal 1162735
MFR# 1162735ISO/ANSI# TPU160308Series KENDEX
$18.89List $23.06
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeK68
MaterialCarbide
Description
The Kennametal 1162735 is a carbide indexable insert, grade K68. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi insert codeTPU322
Ansi size code322
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Included angle60
Industry standard numberTPU322
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTPU
Insert thickness in1/8
Iso insert codeTPU160308
Iso size code160308
Length range0.6000 - 0.6500
Manufacturers catalog number1162735
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeU
Width0.6496
Wiper edgeNo
