Kennametal

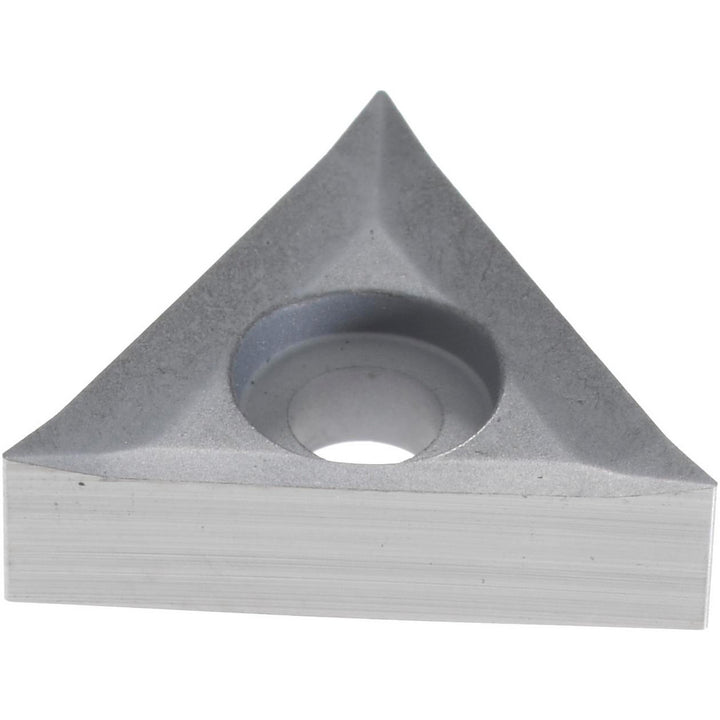

T - Triangle 1/4" IC Carbide Insert, Grade K313 - Kennametal 1163000
MFR# 1163000ISO/ANSI# T110301Series Screw-On
$35.18List $42.19
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeK313
MaterialCarbide
Description
The Kennametal 1163000 is a carbide indexable insert, grade K313.
Specifications
Ansi insert codeT220
Ansi size code220
Chip breakerF
Corner radius0.0040
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.0945
Included angle60
Industry standard numberTNGA332T0820
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code220
Insert styleT
Insert thickness in1/8
Iso insert codeT110301
Iso size code110301
Length range0.4000 - 0.5000
Manufacturers catalog number1163000
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
RakePositive
Relief angle11
Side clearancePositive
