Kennametal

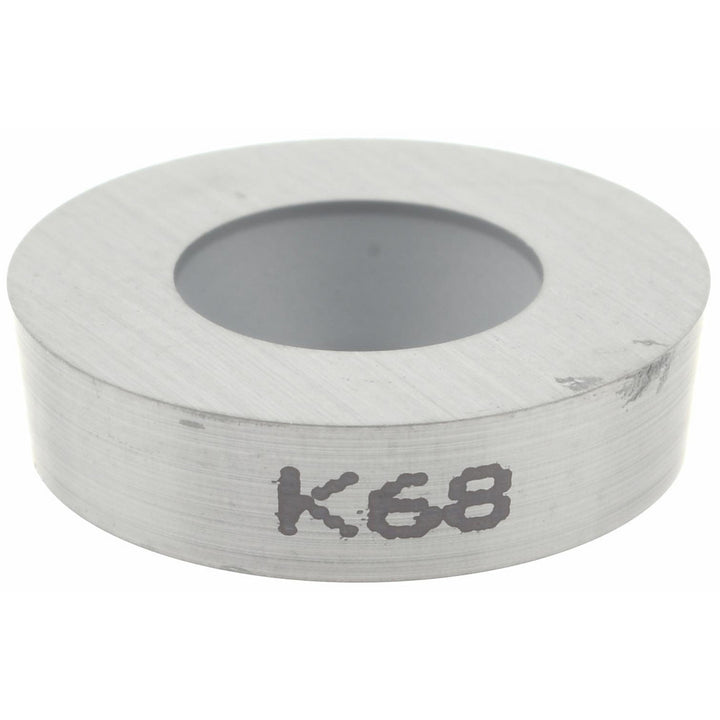

R - Round 1/2" IC Carbide Insert, Grade K68 - Kennametal 1163030
MFR# 1163030ISO/ANSI# RD
$22.36List $27.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeK68
MaterialCarbide
Description
The Kennametal 1163030 is a carbide indexable insert, grade K68.
Specifications
Ansi insert codeRD8
Ansi size code8
Chip breakerP
Chip breaker operationRoughing; Medium Machining
Full radiusYes
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1250
Industry standard numberC2FIX180610LMN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeR - Round
Insert size code452
Insert styleRD
Insert thickness0.2656
Iso insert codeRD
Manufacturers catalog number1163030
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Relief angle15
Side clearancePositive
