Kennametal

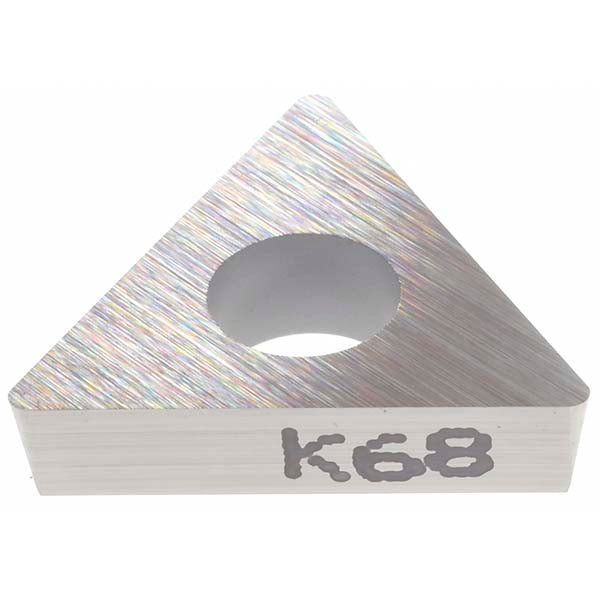

DCMT11T304FW Carbide Insert, Grade K68 - Kennametal 1163037
MFR# 1163037ISO/ANSI# TP110204Series Screw-On
$28.67List $34.39
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeK68
MaterialCarbide
Description
The Kennametal 1163037 is a DCMT11T304FW carbide indexable insert, grade K68.
Specifications
Ansi insert codeTP41
Ansi size code41
Chip breaker operationNo Chip Breaker
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1102
Included angle60
Industry standard numberTPGT21505LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code41
Insert styleTP
Insert thickness in3/32
Iso codeDCMT11T304FW
Iso insert codeTP110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturers catalog number1163037
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
RakePositive
Relief angle11
Side clearancePositive
