Kennametal

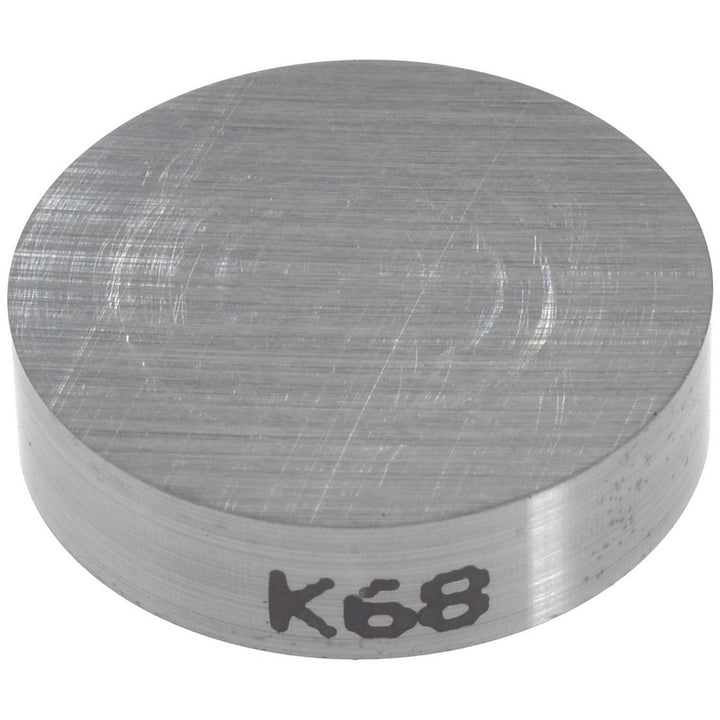

R - Round 1/2" IC Carbide Insert, Grade K68 - Kennametal 1163045
MFR# 1163045ISO/ANSI# RNG120300Series KENDEX
$23.24List $27.87
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeK68
MaterialCarbide
Description
The Kennametal 1163045 is a carbide indexable insert, grade K68. Suited for superalloys & titanium.
Specifications
Ansi insert codeRNG42
Ansi size code42
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/4
Cutting edge styleHoned
Full radiusYes
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Included angle360
Industry standard numberRNG42
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeR - Round
Insert size code42
Insert styleRNG
Insert thickness in1/8
Iso insert codeRNG120300
Iso size code120300
Length range0.5000 - 0.6000
Manufacturers catalog number1163045
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
