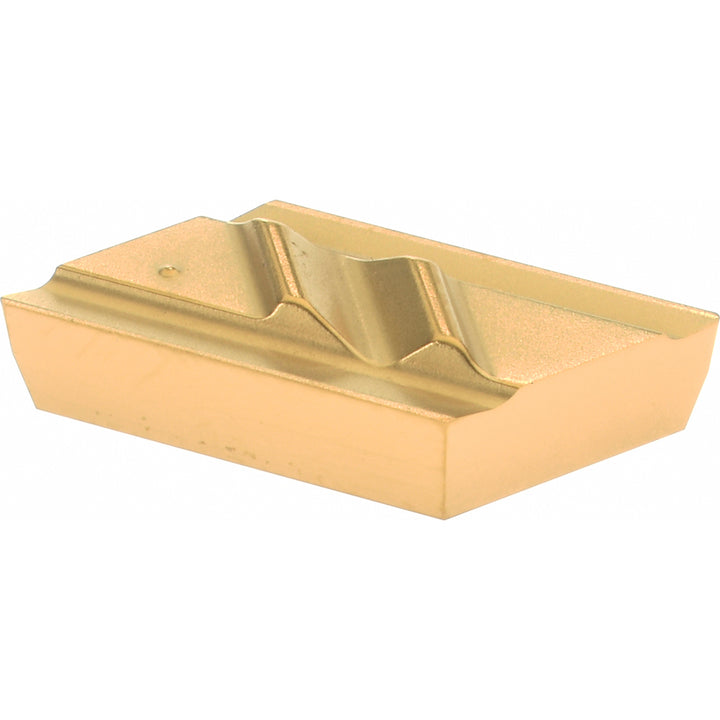

KCGX110302R15 Carbide Insert, Grade KC730, TiN - Kennametal 1163209

Kennametal

KCGX110302R15 Carbide Insert, Grade KC730, TiN - Kennametal 1163209

MFR# 1163209ISO/ANSI# KCGX110302R15Series Top Not

$26.06List $31.81 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1163209 is a KCGX110302R15 carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiN
Coating processPVD
Corner radius0.0080
Hole diameter0.0000
Included angle55
Inscribed circle0.2490
Insert handRight Hand
Insert height0.1250
Insert holding methodScrew
Insert length0.3769
Insert materialCarbide
Insert size code508
Insert styleNPR
Iso codeKCGX110302R15
Manufacturer gradeKC730
Material gradeP10; P20; M10; M20; S10; S20
Maximum depth of cut0.1256
Msc manufacturer numberNPR508
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
ShapeParallelogram
Side length0.3769
StandardsNPR508; KCGX110302R15
Thickness in1/8
Width in1/4
