Kennametal

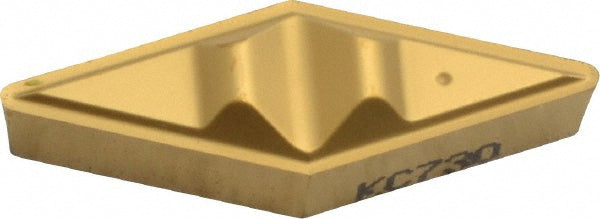

VCGR160408 Carbide Insert, Grade KC730, TiN - Kennametal 1163227
MFR# 1163227ISO/ANSI# VCGR160408Series Top Not
$39.43List $47.30
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1163227 is a VCGR160408 carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiN
Coating processPVD
Corner radius0.0312
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6540
Insert materialCarbide
Insert size code332
Insert styleVPGR
Iso codeVCGR160408
Manufacturer gradeKC730
Material gradeP10; P20; M10; M20; S10; S20
Maximum depth of cut0.2180
Msc manufacturer numberVPGR332
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.6540
StandardsVPGR332; VCGR160408
Thickness in3/16
Width in3/8
