Kennametal

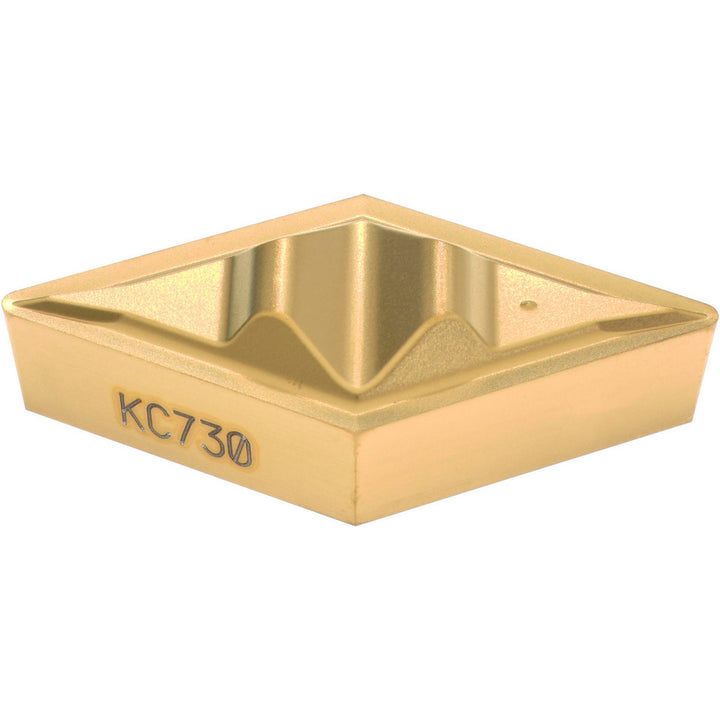

DCGR150408 Carbide Insert, Grade KC730, TiN - Kennametal 1163235
MFR# 1163235ISO/ANSI# DCGR150408Series Top Not
$37.04List $45.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1163235 is a DCGR150408 carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiN
Coating processPVD
Corner radius0.0312
Hole diameter0.0000
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6104
Insert materialCarbide
Insert size code432
Insert styleDPGR
Iso codeDCGR150408
Manufacturer gradeKC730
Material gradeP10; P20; M10; M20; S10; S20
Maximum depth of cut0.2035
Msc manufacturer numberDPGR432
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle8
ShapeParallelogram
Side length0.6104
StandardsDPGR432; DCGR150408
Thickness in3/16
Width in1/2
