Kennametal

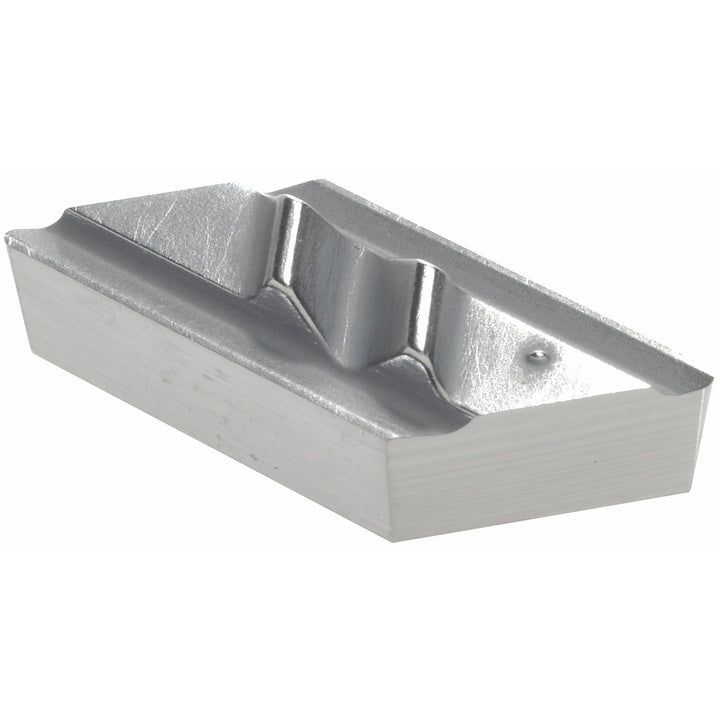

KCGX110304R15 Carbide Insert, Grade K313, WC-Co - Kennametal 1163281
MFR# 1163281ISO/ANSI# KCGX110304R15Series Top Not
$20.48List $25.00
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeK313
MaterialCarbide
CoatingWC-Co
Description
The Kennametal 1163281 is a KCGX110304R15 carbide indexable insert, grade K313, WC-Co coated. Suited for non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishWC-Co
Coating processUncoated
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle0.2490
Insert handRight Hand
Insert height0.1250
Insert holding methodScrew
Insert length0.3769
Insert materialCarbide
Insert size code51
Insert styleNPR
Iso codeKCGX110304R15
Manufacturer gradeK313
Material gradeFine Grain
Maximum depth of cut0.1256
Msc manufacturer numberNPR51
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
ShapeParallelogram
Side length0.3769
StandardsNPR51; KCGX110304R15
Thickness in1/8
Width in1/4
