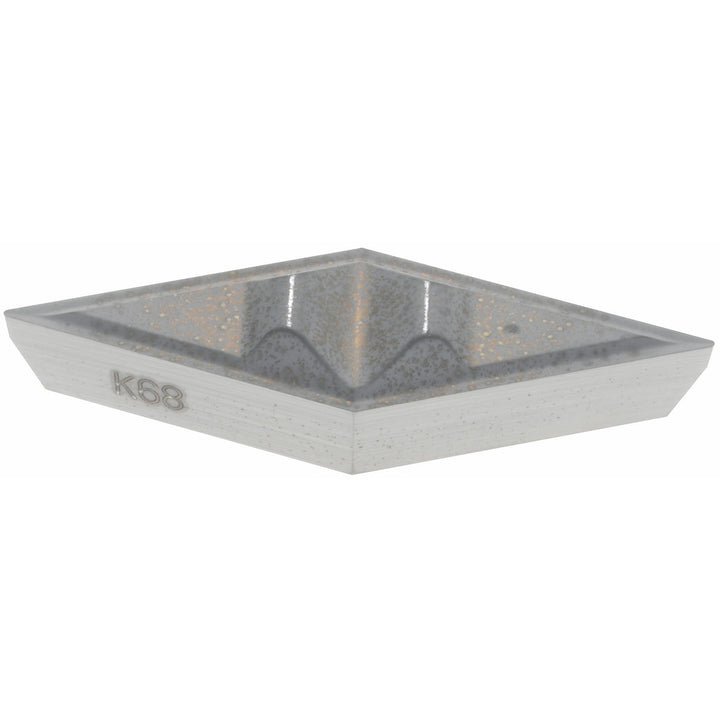

VCGR160402 Carbide Insert, Grade K68, WC-Co - Kennametal 1163325

Kennametal

VCGR160402 Carbide Insert, Grade K68, WC-Co - Kennametal 1163325

MFR# 1163325ISO/ANSI# VCGR160402Series Top Not

$36.36List $43.62 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeK68
MaterialCarbide
CoatingWC-Co

Description

The Kennametal 1163325 is a VCGR160402 carbide indexable insert, grade K68, WC-Co coated. Suited for non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishWC-Co
Coating processUncoated
Corner radius0.0080
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6538
Insert materialCarbide
Insert size code3305
Insert styleVPGR
Iso codeVCGR160402
Manufacturer gradeK68
Material gradeFine Grain
Maximum depth of cut0.2179
Msc manufacturer numberVPGR3305
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.6538
StandardsVPGR3305; VCGR160402
Thickness in3/16
Width in3/8
