Kennametal

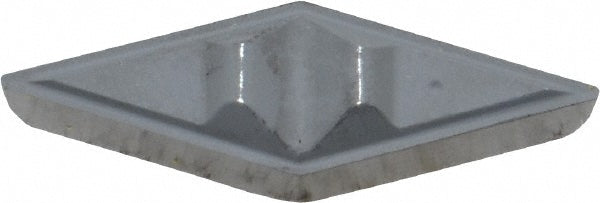

VCGR160404 Carbide Insert, Grade K68, WC-Co - Kennametal 1163326
MFR# 1163326ISO/ANSI# VCGR160404Series Top Not
$30.80List $37.60
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeK68
MaterialCarbide
CoatingWC-Co
Description
The Kennametal 1163326 is a VCGR160404 carbide indexable insert, grade K68, WC-Co coated. Suited for non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishWC-Co
Coating processUncoated
Corner radius0.0156
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6538
Insert materialCarbide
Insert size code331
Insert styleVPGR
Iso codeVCGR160404
Manufacturer gradeK68
Material gradeFine Grain
Maximum depth of cut0.2179
Msc manufacturer numberVPGR331
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.6538
StandardsVPGR331; VCGR160404
Thickness in3/16
Width in3/8
