Kennametal

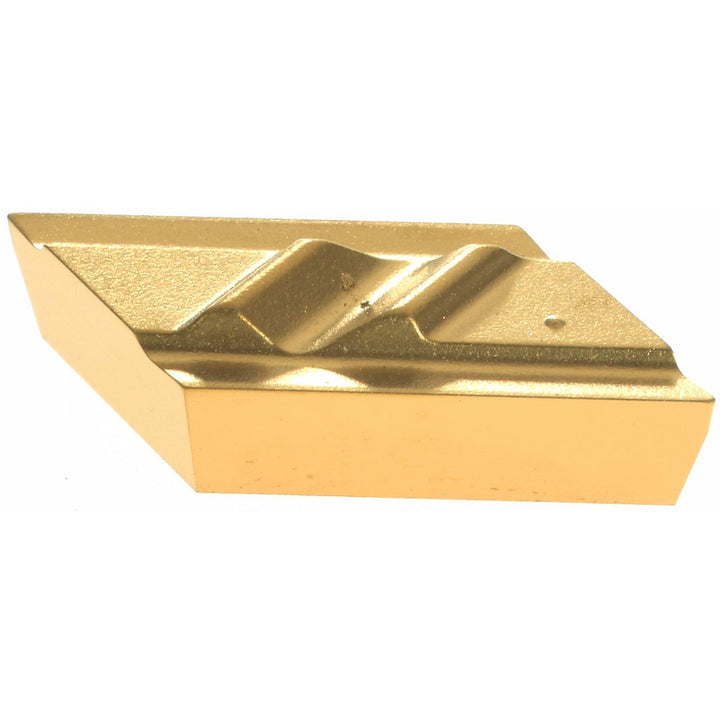

KCGX110301L15 Carbide Insert, Grade KC850 - Kennametal 1163378
MFR# 1163378ISO/ANSI# KCGX110301L15Series Top Not
$26.06List $31.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeKC850
MaterialCarbide
Description
The Kennametal 1163378 is a KCGX110301L15 carbide indexable insert, grade KC850. Suited for steel, stainless steel.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processCVD
Corner radius0.0050
Hole diameter0.0000
Included angle55
Inscribed circle in1/4
Insert handLeft Hand
Insert height0.1250
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert size code505
Insert styleNPL
Iso codeKCGX110301L15
Manufacturer gradeKC850
Material gradeP30; P40; M30; M40
Maximum depth of cut0.1250
Msc manufacturer numberNPL505
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
ShapeParallelogram
Side length0.3750
StandardsNPL505; KCGX110301L15
Thickness in1/8
Width in1/4
