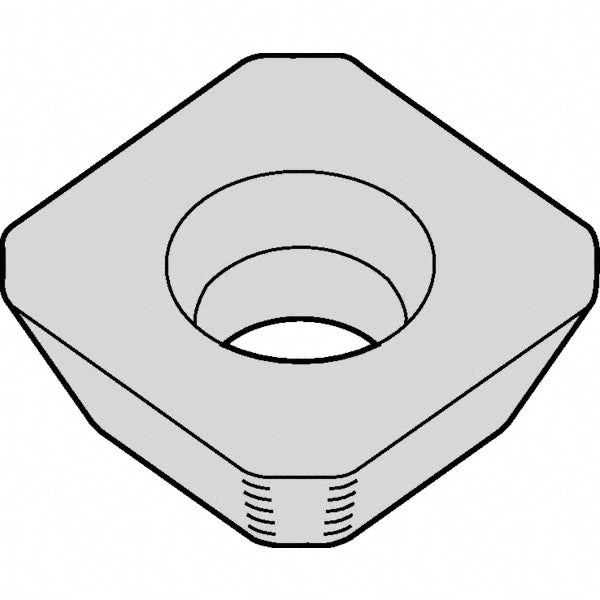

SEHW1204AFN Solid Carbide Insert, Grade K68 - Kennametal 1181296

Kennametal

SEHW1204AFN Solid Carbide Insert, Grade K68 - Kennametal 1181296

MFR# 1181296ISO/ANSI# SEHW1204AFNCat# SEHW1204AFNSeries SEHW

$38.70List $46.41 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeK68
MaterialSolid Carbide

Description

The Kennametal 1181296 is a SEHW1204AFN solid carbide indexable insert, grade K68. Suited for superalloys & titanium.

Specifications

Ansi codeSEHW43A6
Chip breakerFlat Top
Coating processUncoated
Corner radius0.0394
Cutting edge styleSharp
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEHW
Iso codeSEHW1204AFN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEHW1204AFN
Manufacturer gradeK68
Material applicationSuperalloys & Titanium
Material gradeC3
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle0
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1880
Thickness range0.1850 to 0.2000
Width in1/2
