Kennametal

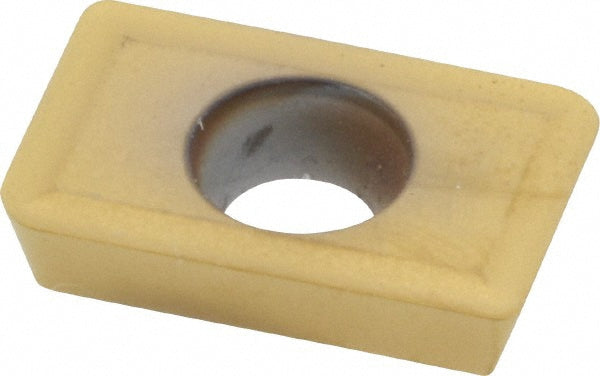

XDMT150316R Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1181435
MFR# 1181435ISO/ANSI# XDMT150316RCat# XDMT150316RSeries XDMT
$41.03List $50.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1181435 is a XDMT150316R solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Coating finishTiN
Coating processPVD
Corner radius in1/16
Hole diameter0.1732
Included angle degree88
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150316
Insert styleXDMT
Iso codeXDMT150316R
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberXDMT150316R
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle15.00
Single or double sided insertSingle
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
