Kennametal

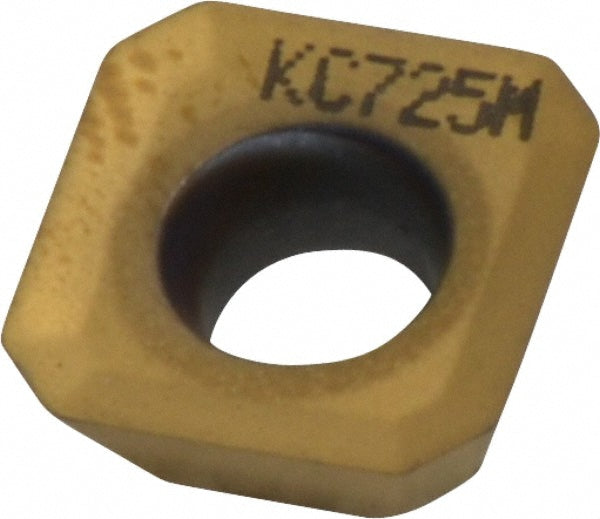

SEHT1204AFN Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1181467
MFR# 1181467ISO/ANSI# SEHT1204AFNCat# SEHT1204AFNSeries SEHT
$39.19List $47.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1181467 is a SEHT1204AFN solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSEHT43A6
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutting edge styleSharp
Hole diameter0.2165
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEHT
Iso codeSEHT1204AFN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEHT1204AFN
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
