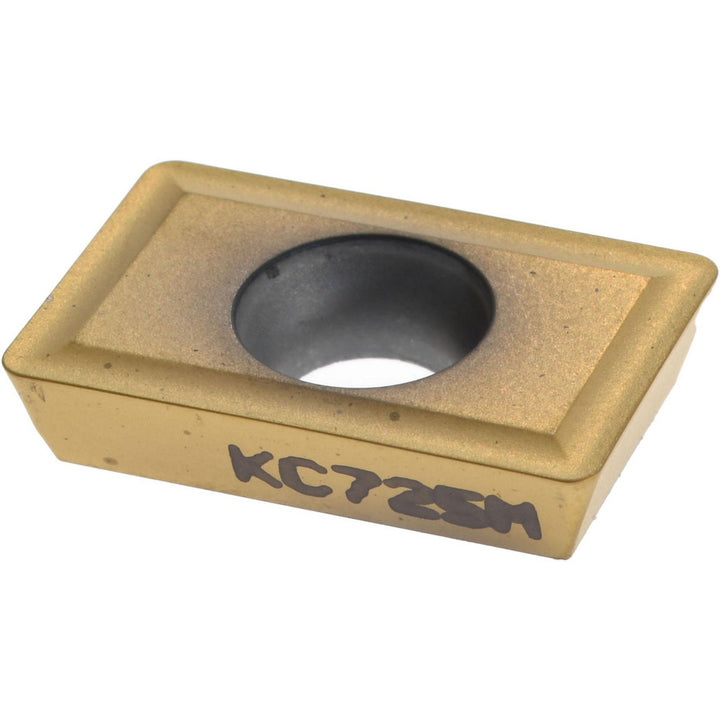

XDMT150308R Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1181484

Kennametal

XDMT150308R Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1181484

MFR# 1181484ISO/ANSI# XDMT150308RCat# XDMT150308RSeries XDMT

$48.44List $58.09 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 1181484 is a XDMT150308R solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree88
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150308
Insert styleXDMT
Iso codeXDMT150308R
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberXDMT150308R
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle15.00
Single or double sided insertSingle
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
