Kennametal

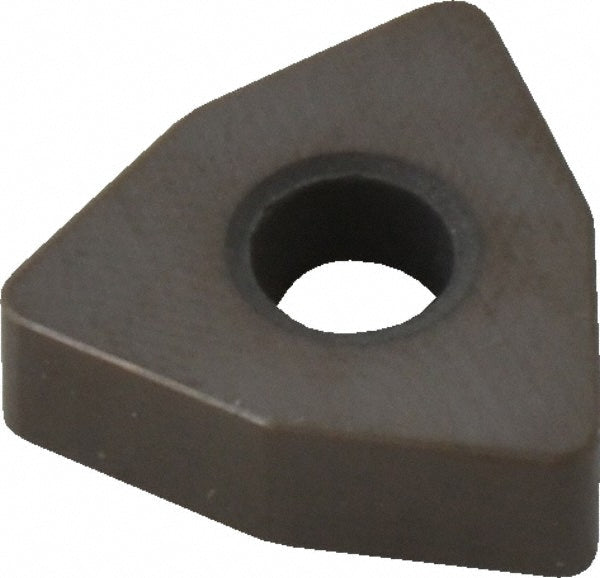

W - Trigon 80-Deg 1/2" IC Ceramic Insert, Grade KY3500 - Kennametal 1181987
MFR# 1181987ISO/ANSI# WNGA080412Series KENLOC
$35.47List $42.54
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeKY3500
MaterialCeramic
Description
The Kennametal 1181987 is a ceramic indexable insert, grade KY3500. Suited for cast iron.
Specifications
Ansi insert codeWNGA433
Ansi size code433
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Industry standard numberWNGA433T0820
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCeramic
Insert shapeW - Trigon 80-Deg
Insert size code433
Insert styleWNGA
Insert thickness in3/16
Iso insert codeWNGA080412
Iso size code080412
Length range0.6500 - 0.7000
Manufacturers catalog number1181987
Manufacturer gradeKY3500
Material gradeSilicon Nitride
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width0.6840
Wiper edgeNo
