Kennametal

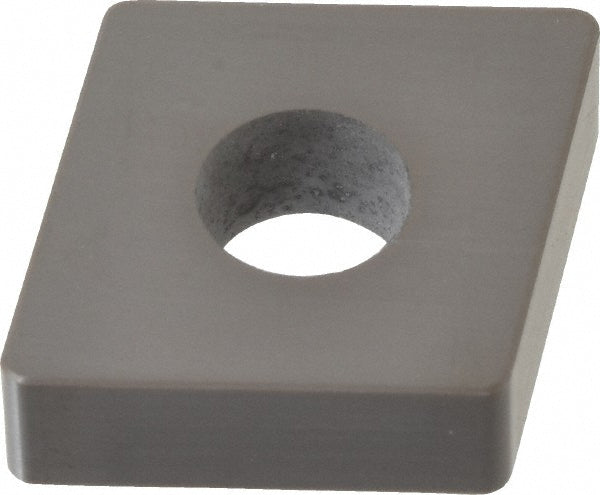

C - Diamond (Rhombic) 80-Deg 3/4" IC Ceramic Insert, Grade KY3500 - Kennametal 1181994
MFR# 1181994ISO/ANSI# CNGA190612Series KENLOC
$41.18List $49.37
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKY3500
MaterialCeramic
Description
The Kennametal 1181994 is a ceramic indexable insert, grade KY3500. Suited for cast iron.
Specifications
Ansi insert codeCNGA643
Ansi size code643
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.3122
Included angle80
Industry standard numberCNGA643T0820
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNGA
Insert thickness in1/4
Iso insert codeCNGA190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number1181994
Manufacturer gradeKY3500
Material gradeSilicon Nitride
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/4
Wiper edgeNo
