Kennametal

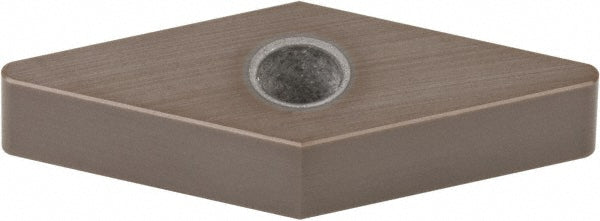

Diamond 35 3/8" IC Ceramic Insert, Grade KY3500 - Kennametal 1182006
MFR# 1182006ISO/ANSI# VNGA332T0820Series KENLOC
$32.78List $39.31
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeKY3500
MaterialCeramic
Description
The Kennametal 1182006 is a ceramic indexable insert, grade KY3500. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNGA332T0820
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCeramic
Insert shapeDiamond 35
Insert size code332
Insert styleVNGA
Insert thickness in3/16
Length range0.7000 - 10.0000
Manufacturers catalog number1182006
Manufacturer gradeKY3500
Material gradeSilicon Nitride
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
