Kennametal
Carbide Insert, Grade KC730, TiN - Kennametal 1182209
MFR# 1182209Series Top Notch
$33.44List $40.82
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description

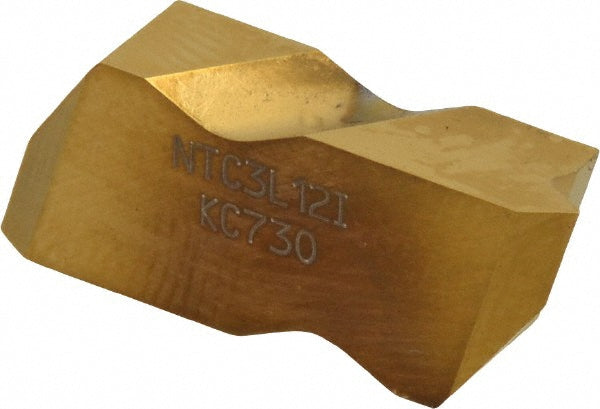

The Kennametal 1182209 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0040
Finish coatingTitanium Nitride
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleNTC
Internal pitch12 TPI
Manufacturer gradeKC730
Material gradeC2; C3; C4
Thickness0.1949
Thread standardUN
Thread typeInternal
Tip to top of insert0.1480
