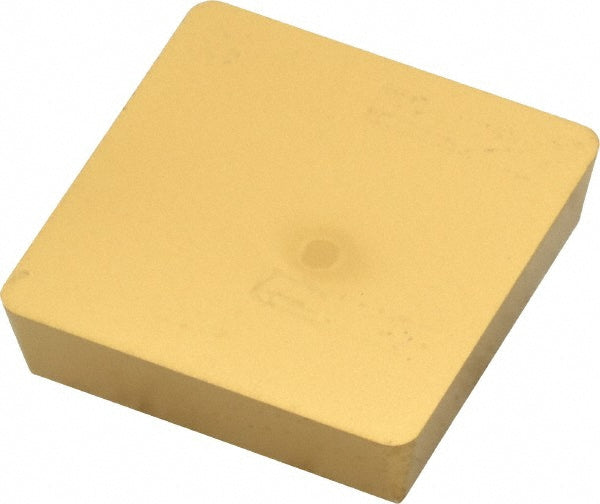

SPGN190412 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1182698

Kennametal

SPGN190412 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1182698

MFR# 1182698ISO/ANSI# SPGN190412Cat# SPGN190412Series SPGN

$58.07List $70.88 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1182698 is a SPGN190412 solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSPG633
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleHoned
Included angle degree90
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size6
Insert size code633
Insert styleSPGN
Iso codeSPGN190412
Length in3/4
Length range0.7000 to 0.9000
Manufacturers catalog numberSPGN190412
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.7500
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/4
