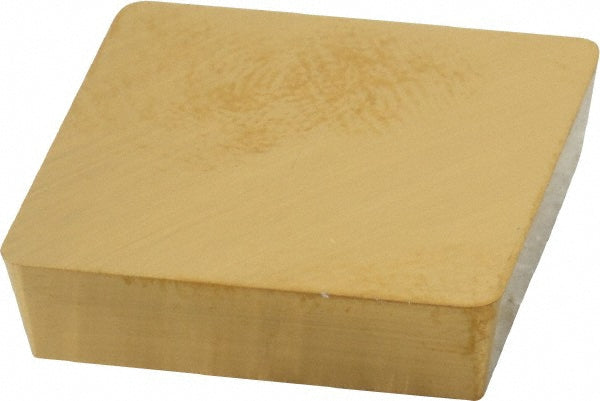

S - Square 3/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1182743

Kennametal

S - Square 3/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1182743

MFR# 1182743ISO/ANSI# SPG190412Series KENDEX

$57.65List $69.15 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeS - Square
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1182743 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeSPG633
Ansi size code633
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle90
Industry standard numberSPG633
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp
Insert length in3/4
Insert materialCarbide
Insert shapeS - Square
Insert size code633
Insert styleSPG
Insert thickness in3/16
Iso insert codeSPG190412
Iso size code190412
Length range0.7000 - 10.0000
Manufacturers catalog number1182743
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/4
Wiper edgeNo
