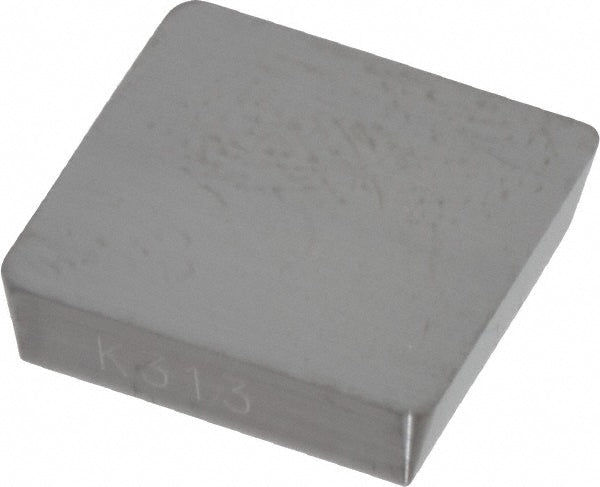

Square 1/2" IC Carbide Insert, Grade K313 - Kennametal 1182853

Kennametal

Square 1/2" IC Carbide Insert, Grade K313 - Kennametal 1182853

MFR# 1182853ISO/ANSI# SPG422Series KENDEX

$24.74List $30.20 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeK313
MaterialCarbide

Description

The Kennametal 1182853 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Chip breakerFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle90degree
Industry standard numberSPG422
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code422
Insert styleSPG
Insert thickness in1/8
Length range0.5000 - 0.6000
Manufacturers catalog number1182853
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
