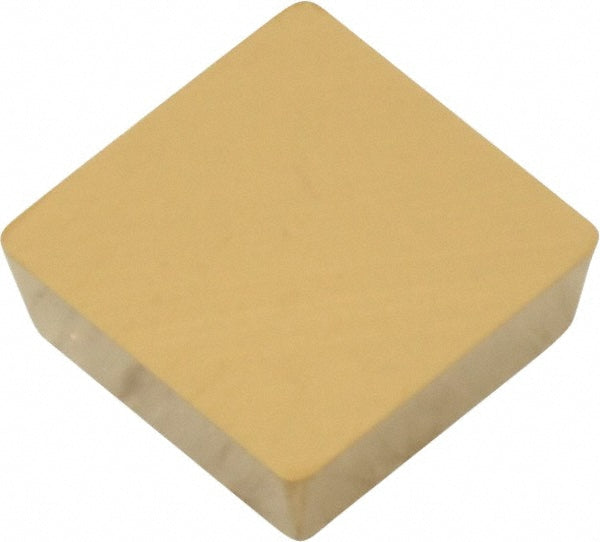

S - Square 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1182966

Kennametal

S - Square 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1182966

MFR# 1182966ISO/ANSI# SPG120408Series KENDEX

$34.54List $42.17 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1182966 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeSPG432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Included angle90
Industry standard numberSPG432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSPG
Insert thickness in3/16
Iso insert codeSPG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1182966
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
