Kennametal

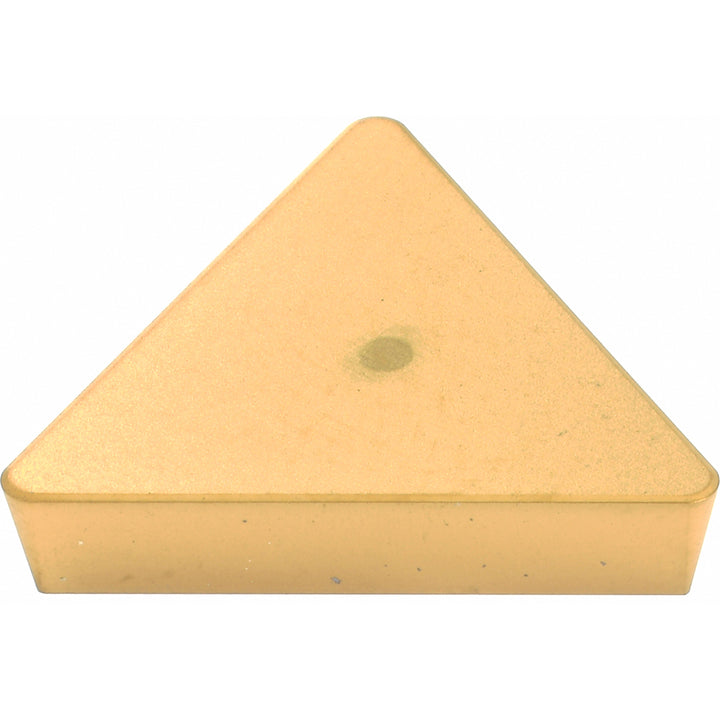

TPGN160308T Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1183018
MFR# 1183018ISO/ANSI# TPGN160308TCat# TPGN160308TSeries TPGN
$42.71List $51.23
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1183018 is a TPGN160308T solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeTPG322T
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleT-Land
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size3
Insert size code322
Insert styleTPGN
Iso codeTPGN160308T
Length0.6496
Length range0.6000 to 0.6500
Manufacturers catalog numberTPGN160308T
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
