Kennametal

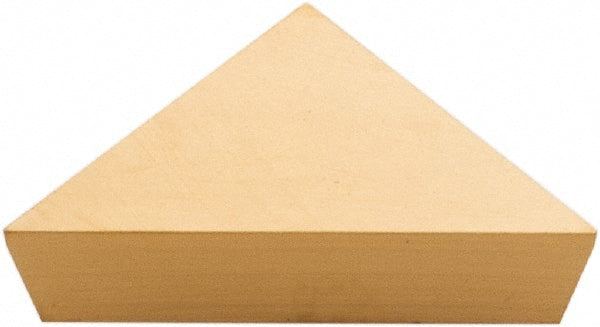

T - Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1183066
MFR# 1183066ISO/ANSI# TPG160301Series KENDEX
$27.73List $33.85
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1183066 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTPG3202
Ansi size code3202
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius0.0039
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Industry standard numberTPG3202
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6495
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3202
Insert styleTPG
Insert thickness in1/8
Iso insert codeTPG160301
Iso size code160301
Length range0.6000 - 0.6500
Manufacturers catalog number1183066
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6495
Wiper edgeNo
