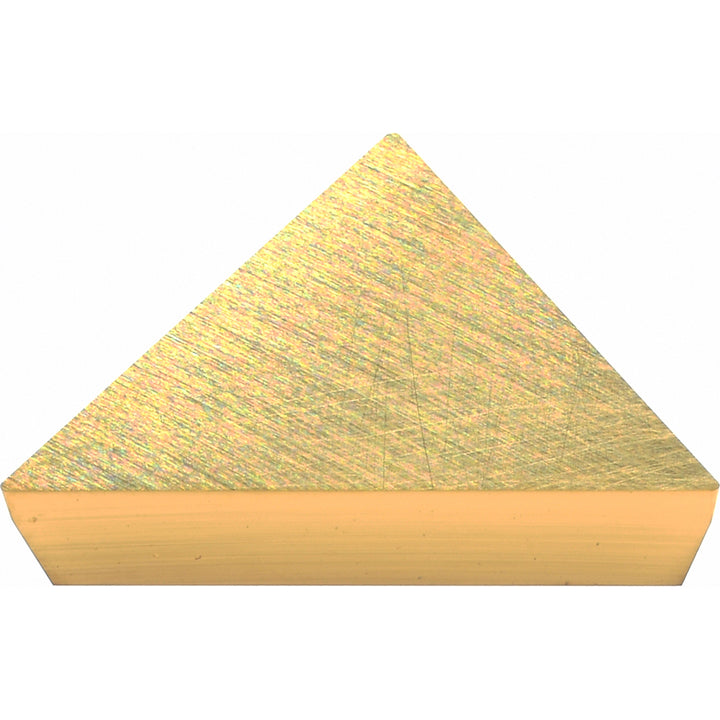

T - Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1183071

Kennametal

T - Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1183071

MFR# 1183071ISO/ANSI# TPG160302Series KENDEX

$32.74List $39.27 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1183071 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTPG3205
Ansi size code3205
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Industry standard numberTPG3205
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3205
Insert styleTPG
Insert thickness in1/8
Iso insert codeTPG160302
Iso size code160302
Length range0.6000 - 0.6500
Manufacturers catalog number1183071
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
