Kennametal

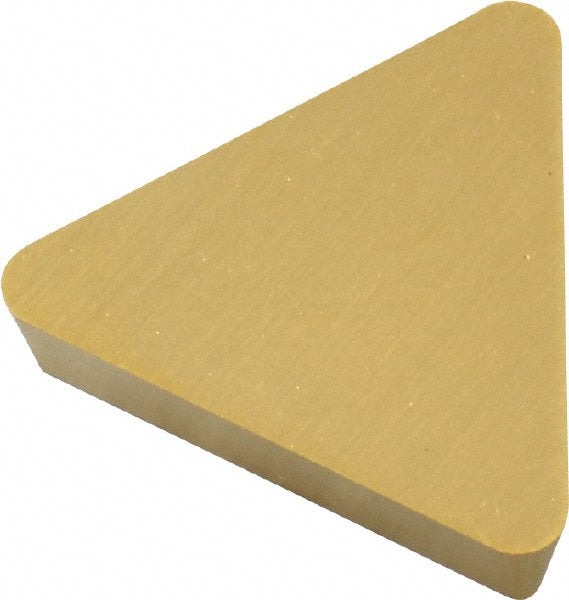

T - Triangle 1/2" IC Carbide Insert, Grade KC730, TiN - Kennametal 1183076
MFR# 1183076ISO/ANSI# TPG220416Series KENDEX
$37.30List $45.53
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1183076 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTPG434
Ansi size code434
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/16
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Industry standard numberTPG434
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code434
Insert styleTPG
Insert thickness in3/16
Iso insert codeTPG220416
Iso size code220416
Length range0.7000 - 10.0000
Manufacturers catalog number1183076
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.8661
Wiper edgeNo
