Kennametal

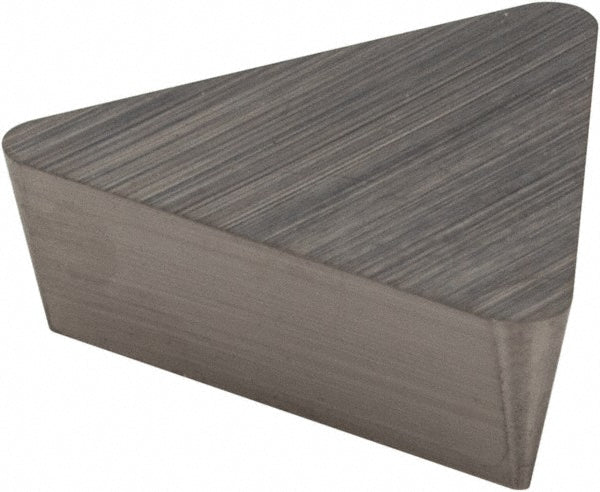

T - Triangle 1/4" IC Carbide Insert, Grade K68 - Kennametal 1183255
MFR# 1183255ISO/ANSI# TPG110308Series KENDEX
$24.20List $29.02
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeK68
MaterialCarbide
Description
The Kennametal 1183255 is a carbide indexable insert, grade K68. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi insert codeTPG222
Ansi size code222
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Included angle60
Industry standard numberTPG222
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code222
Insert styleTPG
Insert thickness in1/8
Iso insert codeTPG110308
Iso size code110308
Length range0.4000 - 0.5000
Manufacturers catalog number1183255
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
