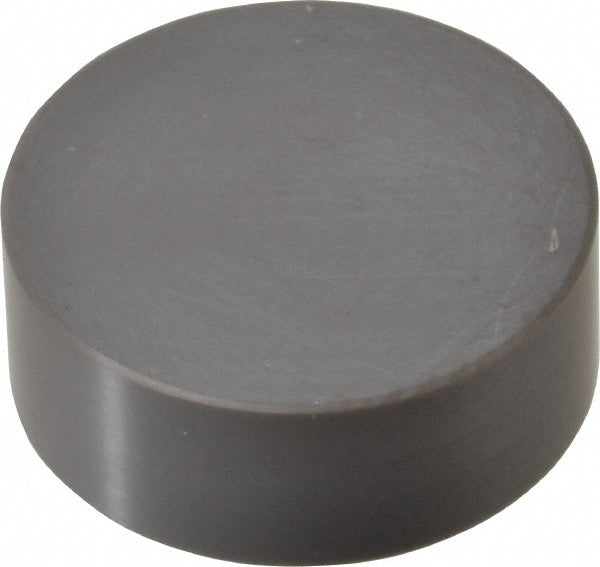

R - Round 1/2" IC Ceramic Insert, Grade KY3500 - Kennametal 1183574
MFR# 1183574ISO/ANSI# RNG120400Series KENDEX
$23.62List $28.32
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKY3500
MaterialCeramic
Description
The Kennametal 1183574 is a ceramic indexable insert, grade KY3500. Suited for cast iron.
Specifications
Ansi insert codeRNG43
Ansi size code43
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/4
Cutting edge styleT-Land
Full radiusYes
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle360
Industry standard numberRNG43T0820
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeR - Round
Insert size code43
Insert styleRNG
Insert thickness in3/16
Iso insert codeRNG120400
Iso size code120400
Length range0.5000 - 0.6000
Manufacturers catalog number1183574
Manufacturer gradeKY3500
Material gradeSilicon Nitride
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
