Kennametal

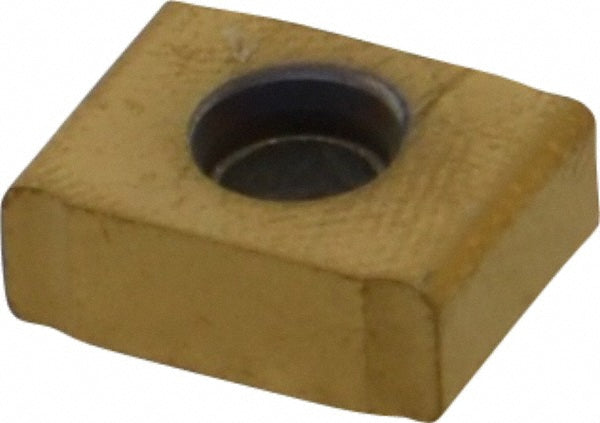

LNEU1245R08 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1184088
MFR# 1184088ISO/ANSI# LNEU1245R08Cat# LNEU1245R08Series LNEU
$52.98List $63.54
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRectangle
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1184088 is a LNEU1245R08 solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNEU1245R08
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityLN
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size12
Insert size code1245
Insert styleLNEU
Iso codeLNEU1245R08
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberLNEU1245R08
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width in3/8
