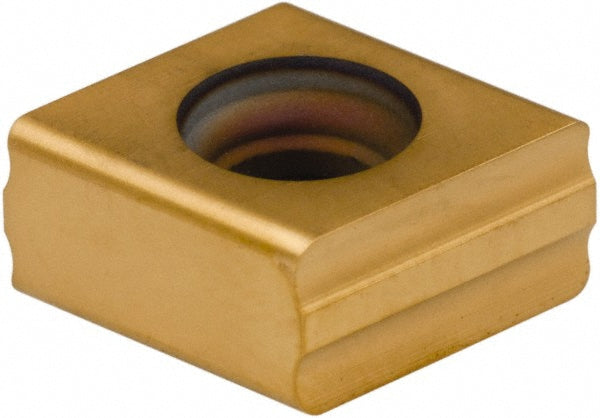

CNHU1005R08 Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1184107
MFR# 1184107ISO/ANSI# CNHU1005R08Cat# CNHU1005R08Series CNHU
$45.21List $55.18
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1184107 is a CNHU1005R08 solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1850
Included angle degree80
Inscribed circle0.3961
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1005
Insert styleCNHU
Iso codeCNHU1005R08
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberCNHU1005R08
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle0.00
Thickness0.2126
Thickness range0.2000 to 0.2200
