Kennametal

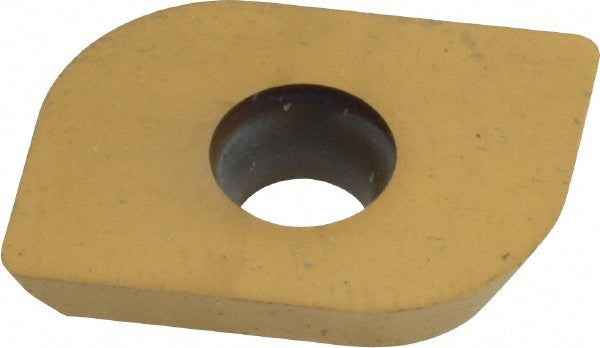

LFEW220412ERLN Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1184133
MFR# 1184133ISO/ANSI# LFEW220412ERLNCat# LFEW220412ERLNSeries LFEW
$61.20List $74.70
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1184133 is a LFEW220412ERLN solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLN
Coating finishTiN
Coating processPVD
Corner radius in3/64
Hole diameter0.2165
Included angle degree90
Inscribed circle0.4724
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size35
Insert size code3533
Insert styleLFEW
Iso codeLFEW220412ERLN
Length0.8732
Length range0.7000 to 0.9000
Manufacturers catalog numberLFEW220412ERLN
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle0
Relief angle25.00
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in5/8
