Kennametal

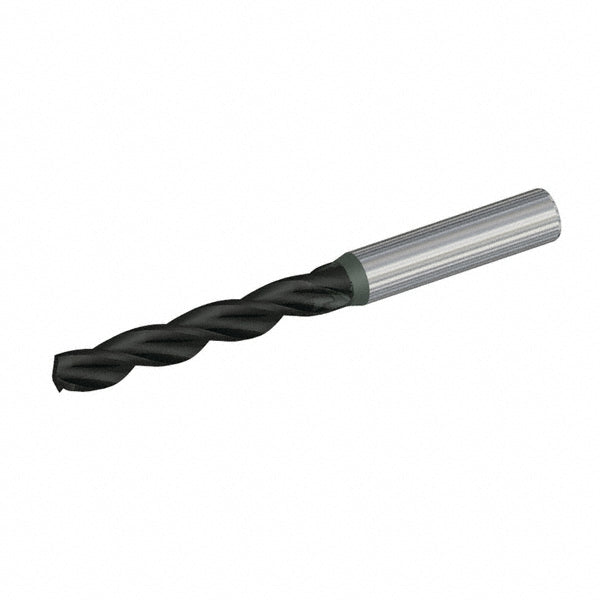

0.2520" Solid Carbide Drill Bit, 130° point - Kennametal 1191429
MFR# 1191429
$166.31List $213.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Kennametal 1191429 is a 0.2520" Solid Carbide drill bit, 130° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.006 to 0.021 mm
Drill bit finish coatingBright
Drill bit materialSolid Carbide
Drill bit size0.2520
Drill bit size range0.2500 - 0.3000
Drill point angle degrees130
Drill point length (mm)1.60
Flute length (mm)53.00
Flute typeSpiral
Material gradeK10
Maximum drilling depth1.6929
Number of flutes3
Overall length (mm)91.00
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
