Kennametal

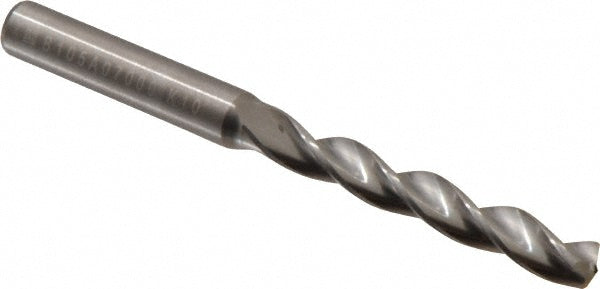

0.2756" Solid Carbide Drill Bit, 130° point - Kennametal 1191433
MFR# 1191433
$196.34List $247.43
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Kennametal 1191433 is a 0.2756" Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous, high-temp alloy.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.006 to 0.021 mm
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.2756
Drill bit size range0.2500 - 0.3000
Drill point angle degrees130
Drill point length (mm)1.80
Flute length2.0866
Flute typeRegular Spiral
Material gradeK10
Maximum drilling depth1.6929
Number of flutes3
Overall length3.5827
Point typeStandard
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
