Kennametal

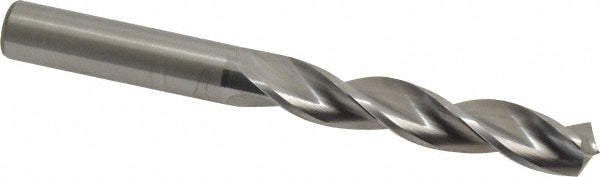

0.4724" Solid Carbide Drill Bit, 130° point - Kennametal 1191454
MFR# 1191454
$361.75List $463.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Kennametal 1191454 is a 0.4724" Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous, high-temp alloy.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.007 to 0.025 mm
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.4724
Drill bit size range0.4000 - 0.5000
Drill point angle degrees130
Drill point length (mm)3.00
Flute length2.7953
Flute typeRegular Spiral
Material gradeK10
Maximum drilling depth2.2047
Number of flutes3
Overall length4.6457
Point typeStandard
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.4724
Shank length1.7717
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
