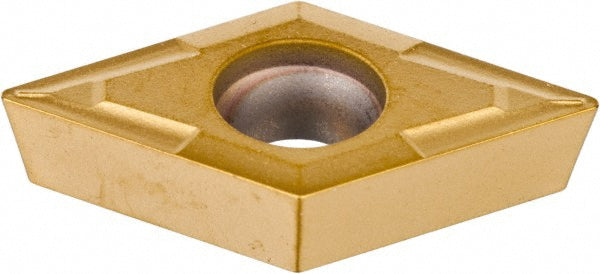

D - Diamond (Rhombic) 55-Deg 1/4" IC Cermet Insert, Grade KT315, TiN - Kennametal 1198179

Kennametal

D - Diamond (Rhombic) 55-Deg 1/4" IC Cermet Insert, Grade KT315, TiN - Kennametal 1198179

MFR# 1198179ISO/ANSI# DCMT070202Series Screw-On

$28.39List $34.05 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeKT315
MaterialCermet
CoatingTiN

Description

The Kennametal 1198179 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi insert codeDCMT21505
Ansi size code21505
Chip breaker11
Chip breaker operationFinishing
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1122
Included angle55
Industry standard numberDCMT2150511
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialCermet
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21505
Insert styleDCMT
Insert thickness in3/32
Iso insert codeDCMT070202
Iso size code070202
Length range0.6000 - 0.6500
Manufacturers catalog number1198179
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
