Kennametal

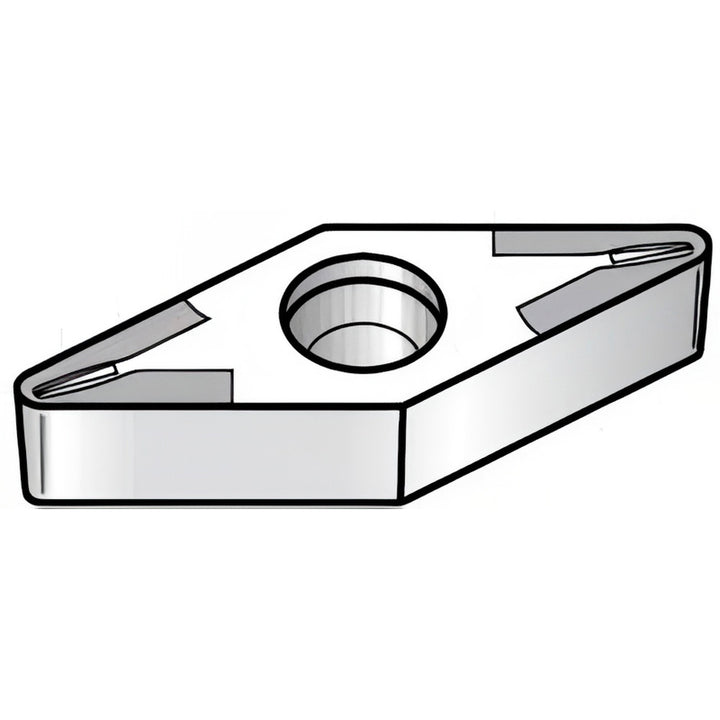

V - Diamond (Rhombic) 35-Deg 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1198184
MFR# 1198184ISO/ANSI# VBMT160408Series Screw-On
$34.63List $41.53
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1198184 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeVBMT332
Ansi size code332
Chip breaker11
Chip breaker operationFinishing
Clearance codeB
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1732
Included angle35
Industry standard numberVBMT33211
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCermet
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso insert codeVBMT160408
Iso size code160408
Length range0.7000 - 10.0000
Manufacturers catalog number1198184
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
