Kennametal

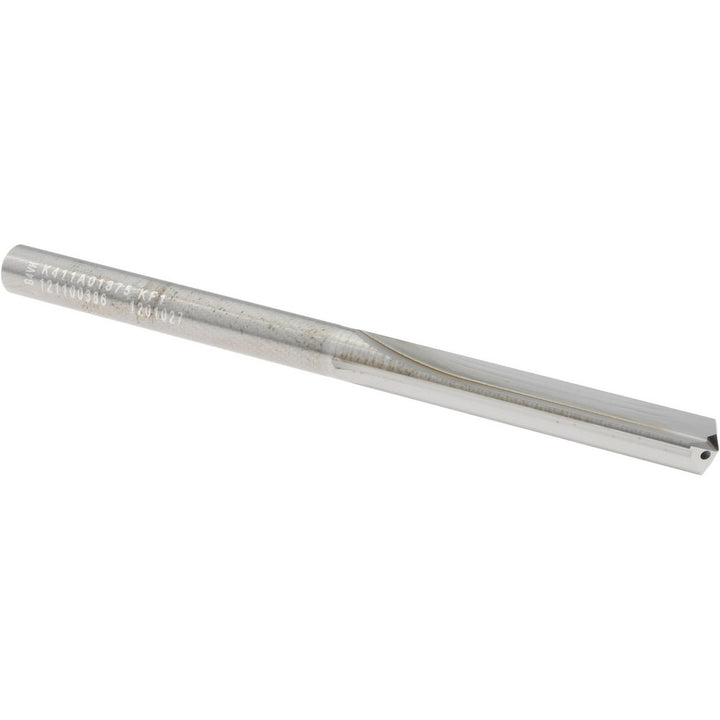

3/16" Carbide Drill Bit, 130° point - Kennametal 1201027
MFR# 1201027Series K411
$147.95List $186.45
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
Description
The Kennametal 1201027 is a 3/16" Carbide drill bit, 130° point. Suited for cast iron, non-ferrous metals. Series K411.
Specifications
Coolant hole shapeRound
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to +0.0004 in
Drill bit size in3/16
Drill bit typeStraight-Flute
Drill point angle130
Drill point length0.0440
Flute length1.4000
Maximum drilling depth1.1300
Number of flutes2
Overall length2.9130
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metals
Secondary workpiece materialCast Iron; Non-Ferrous Metals
Shank length1.4370
Specification numberDIN 6537L
Tool materialCarbide
Web thinningWeb-Thinned
