Kennametal

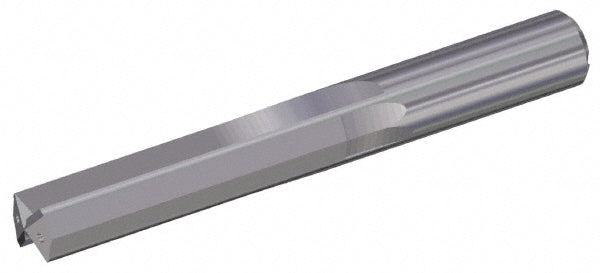

15/64" Carbide Drill Bit, 130° point - Kennametal 1201030
MFR# 1201030Series K411
$125.93List $161.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/64
Flutes2
Description
The Kennametal 1201030 is a 15/64" Carbide drill bit, 130° point. Suited for cast iron, non-ferrous metals. Series K411.
Specifications
Coolant hole shapeRound
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to +0.0004 in
Drill bit size in15/64
Drill bit typeStraight-Flute
Drill point angle130
Drill point length0.0550
Flute length1.7100
Material gradeKF1
Maximum drilling depth1.3700
Number of flutes2
Overall length3.2280
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metals
Secondary workpiece materialCast Iron; Non-Ferrous Metals
Shank diameter (mm)6.35
Shank length1.4370
Specification numberDIN 6537L
Tool materialCarbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
