Kennametal

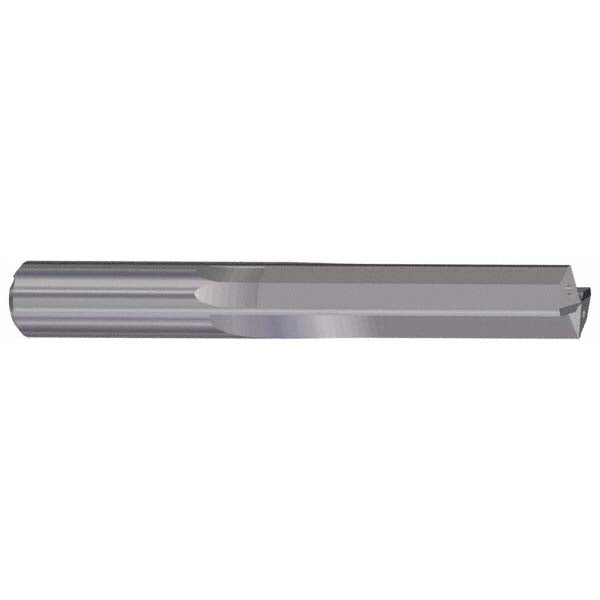

9/16" Carbide Drill Bit, 130° point - Kennametal 1201051
MFR# 1201051Series K411
$530.84List $668.98
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
Flutes2
Description
The Kennametal 1201051 is a 9/16" Carbide drill bit, 130° point. Suited for cast iron, non-ferrous metals. 3.0100 flute length. Series K411.
Specifications
Coolant hole shapeRound
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to +0.0005 in
Drill bit size in9/16
Drill bit typeStraight-Flute
Drill point angle130
Drill point length0.1310
Flute length in3.0100
Maximum drilling depth2.3600
Number of flutes2
Overall length4.8820
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metals
Secondary workpiece materialCast Iron; Non-Ferrous Metals
Shank length1.7910
Specification numberDIN 6537L
Tool materialCarbide
Web thinningWeb-Thinned
