Kennametal

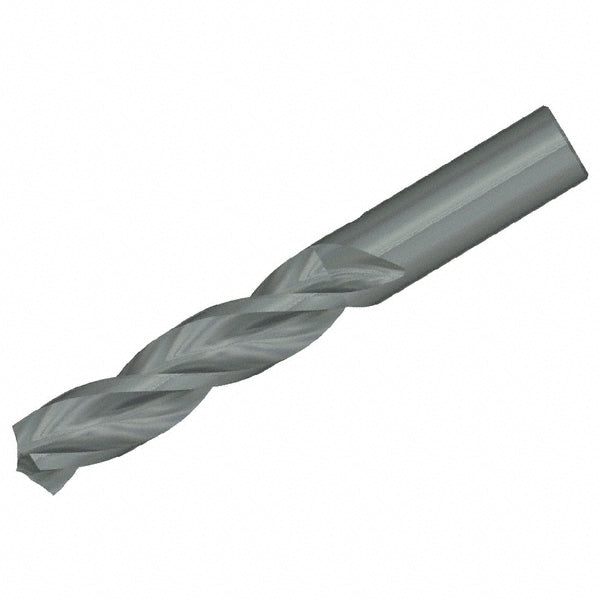

1/4" Solid Carbide Drill Bit, 130° point - Kennametal 1201713
MFR# 1201713
$196.34List $247.43
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes3
Description
The Kennametal 1201713 is a 1/4" Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous, high-temp alloy.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 - 0.3000
Drill point angle degrees130
Drill point length (mm)1.59
Flute by diameter ratio5xD
Flute length2.0866
Flute typeRegular Spiral
Material gradeK10
Maximum drilling depth (mm)43.00
Number of flutes3
Overall length3.5827
Point typeStandard
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter (mm)8
Shank length (mm)36
Shank typeStraight
Spiral typeRegular
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
