Kennametal

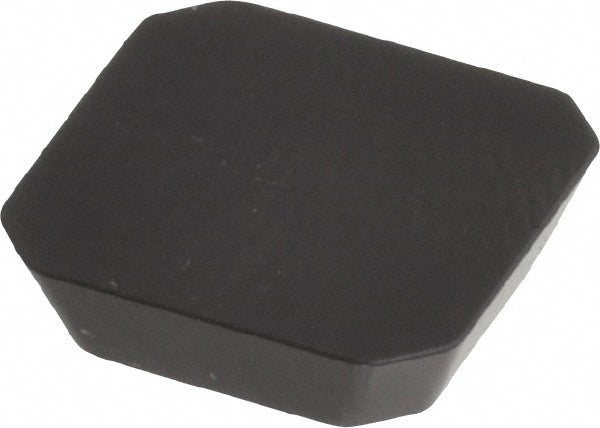

SEKN1203AFTN Solid Carbide Insert, Grade KCK15, TiN - Kennametal 1204723
MFR# 1204723ISO/ANSI# SEKN1203AFTNCat# SEKN1203AFTNSeries SEKN
$35.17List $42.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCK15
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1204723 is a SEKN1203AFTN solid carbide indexable insert, grade KCK15, TiN coated. Suited for cast iron.
Specifications
Coating finishTiN
Coating processCVD
Corner radius0.0390
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size42
Insert size code42
Insert styleSEKN
Iso codeSEKN1203AFTN
Manufacturers catalog numberSEKN1203AFTN
Manufacturer gradeKCK15
Material applicationCast Iron
Material gradeC1
Primary workpiece materialCast Iron
Rake angle0
Relief angle20.00
Thickness in1/8
Thickness range0.1250 to 0.1500
