Kennametal

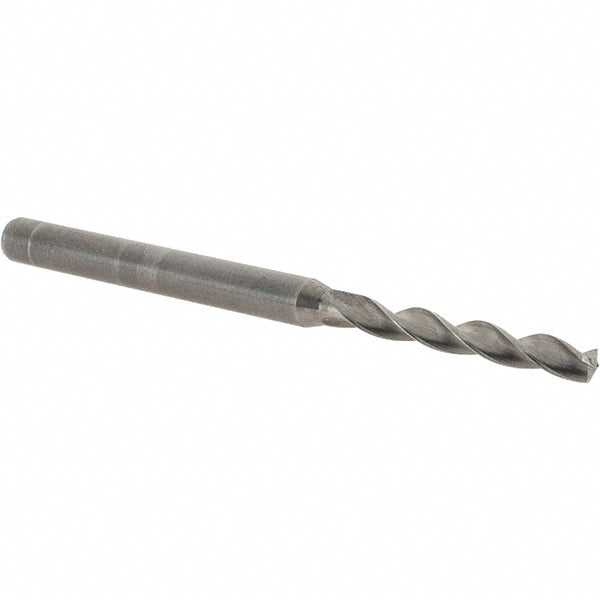

9/64" Solid Carbide Drill Bit, 130° point - Kennametal 1235379
MFR# 1235379
$138.01List $176.75
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
Flutes3
Description
The Kennametal 1235379 is a 9/64" Solid Carbide drill bit, 130° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0002 to +0.0006 in
Drill bit finish coatingBright
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Drill point length0.0350
Flute length1.0600
Flute typeSpiral
Material gradeK10
Maximum drilling depth0.8400
Number of flutes3
Overall length2.6000
Point typeStandard
Shank diameter in3/16
Shank length1.4400
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
