Kennametal

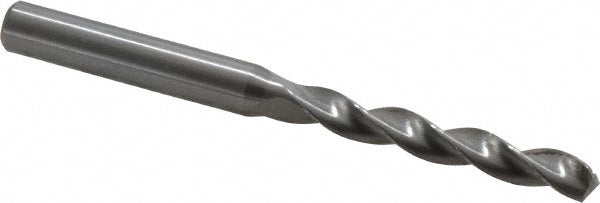

Letter F Solid Carbide Drill Bit, 130° point - Kennametal 1235611
MFR# 1235611
$166.31List $213.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Kennametal 1235611 is a Letter F Solid Carbide drill bit, 130° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0002 to +0.0008 in
Drill bit finish coatingBright
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2570
Drill bit size letterF
Drill bit size range0.2500 - 0.3000
Drill point angle degrees130
Drill point length0.0640
Flute length1.9700
Flute typeSpiral
Material gradeK10
Maximum drilling depth1.5900
Number of flutes3
Overall length3.5800
Point typeStandard
Shank diameter0.3125
Shank length1.5200
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
