Kennametal

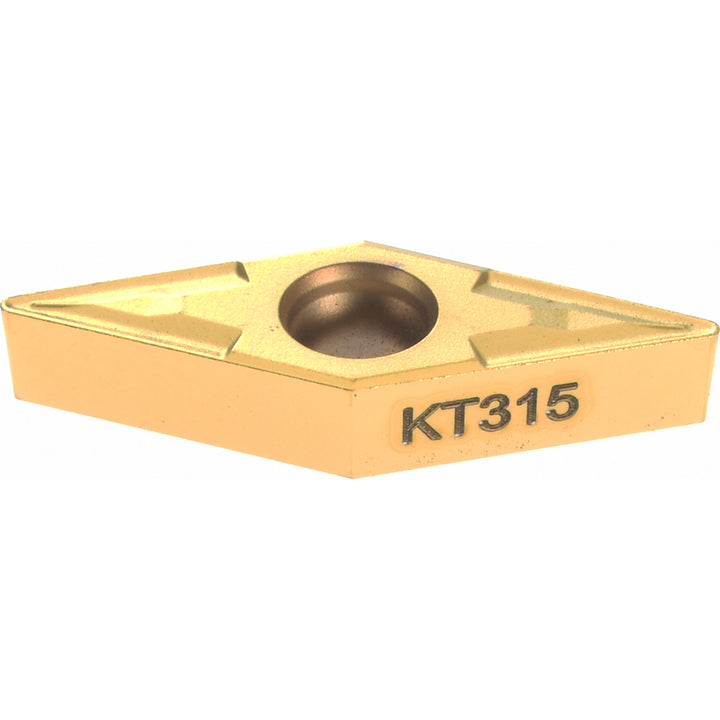

V - Diamond (Rhombic) 35-Deg 1/4" IC Cermet Insert, Grade KT315, TiN - Kennametal 1291909
MFR# 1291909ISO/ANSI# VBMT110304Series Screw-On
$33.32List $39.96
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1291909 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeVBMT221
Ansi size code221
Chip breaker11
Chip breaker operationFinishing
Clearance codeB
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1122
Included angle35
Industry standard numberVBMT22111
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCermet
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso insert codeVBMT110304
Iso size code110304
Length range0.7000 - 10.0000
Manufacturers catalog number1291909
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
