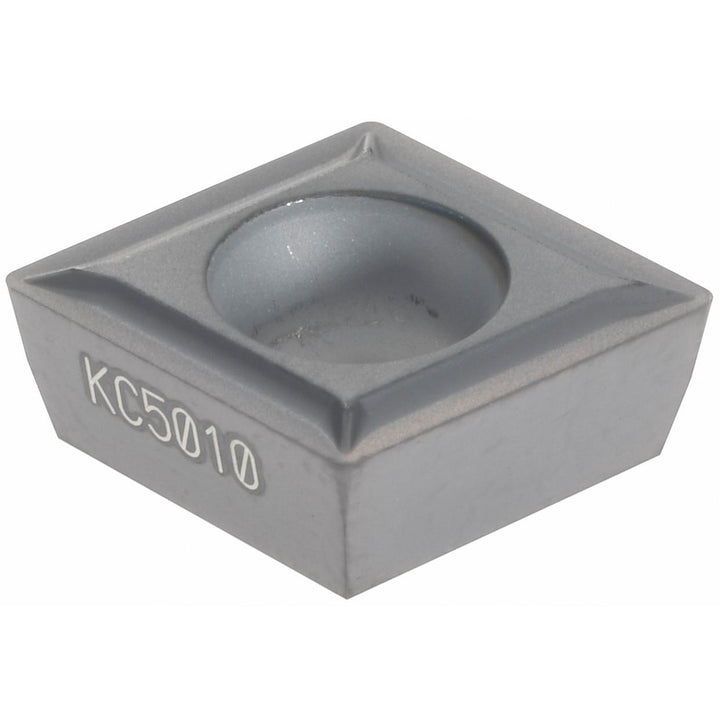

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1310878

Kennametal

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1310878

MFR# 1310878ISO/ANSI# CPGT09T304Series Screw-On

$30.65List $37.41 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1310878 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCPGT3251
Ansi size code3251
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1732
Included angle80
Industry standard numberCPGT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3251
Insert styleCPGT
Insert thickness in5/32
Iso insert codeCPGT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog number1310878
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
