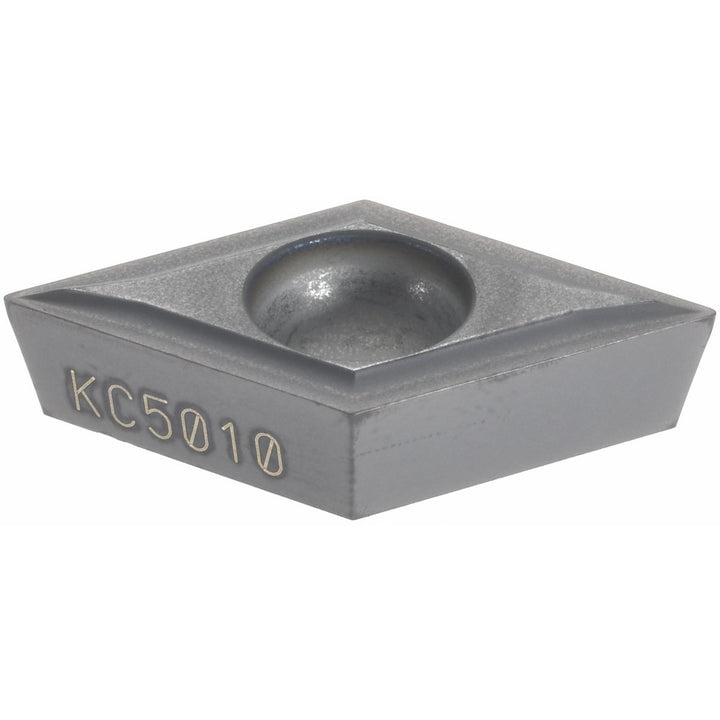

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1310887

Kennametal

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1310887

MFR# 1310887ISO/ANSI# DCMT11T302Series Screw-On

$21.72List $26.51 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1310887 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDCMT32505
Ansi size code32505
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1732
Included angle55
Industry standard numberDCMT32505LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32505
Insert styleDCMT
Insert thickness in5/32
Iso insert codeDCMT11T302
Iso size code11T302
Length range0.7000 - 10.0000
Manufacturers catalog number1310887
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
